Racepak Air Fuel - Wide Band O2

Replacemnet Sensors Bung Installation



Daytona AF/O2 senors

Features:

  • Works on 12 or 16 volt systems
  • includes sesnor & weld bung
  • Works with gas, methanol, E85
  • Single channel, no display for data acquisition only
  • Uses the economical Bosch 4.2 sensor
  • 18" sensor pigtail, 40" sensor harness easily reaches both sides of the engine. 27" power/ground/racepak feed wires



111006-RP   Single O2 kit with Racepak module

WEB Price
$470

111006   Daytona single AF kit - NO RP module

WEB Price
$305

Dual Channel

Features:

  • Works on 12 or 16 volt systems
  • includes sesnor & weld bung
  • Works with gas, methanol, E85
  • Single channel, no display for data acquisition only
  • Uses the economical Bosch 4.2 sensor
  • 18" sensor pigtail, 40" sensor harness easily reaches both sides of the engine. 27" power/ground/racepak feed wires



111004-RP  Dual O2 kit

WEB Price
$790

111004  Dual O2 kit - No Rp modules

WEB Price
$440



V-net Module required to bring signal into your Racepak system. This module is included in the 111004-RP and 111005-RP kits.

4' Cable - setup for AF

230-VM-AN-5V   AF module

WEB Price
$175

                     A-F

AF-1 single channel air/fuel sensor   with sensor This is the same unit for any fuel. Its simply a software setup option to specify methanol etc.

Note in order if you want the software setup for Methanol or E85 (same physical unit for any fuel)



A/F ratios between 9.55:1 and 20:1, while methanol is shown from 4.22:1 to 8.7:1.

220-VM-AF1
  $510
The AF2 has been discontinued effective 1/1/12 220-VM-AF2

4 Channel Controller, Cylinders 1, 3, 5, 7
(For use on 2, 4, 6, 8 cylinder bank of V8, i.e. GM & Mopar)
   No sensors ($80 each)

Cable lengths: controller to sensor plug 36", sensor 14", V-net pigtail 16", power 60"

220-VM-AF1357
  $1505
4 Channel Controller, Cylinders 2,4,6,8
(For use on 1, 3, 5, 7 cylinder bank of V8, i.e. GM & Mopar)
   No sensors ($80 each)
220-VM-AF2468
 $1505

4 Channel Controller, Cylinders 1, 2, 3, 4
(For use on 1, 2, 3, 4 cylinder bank of V8, i.e. Ford)
    No sensors ($80 each)

220-VM-AF1234
 $1505
4 Channel Controller, Cylinders 5, 6, 7, 8
(For use on 5, 6, 7, 8 cylinder bank of V8, i.e. Ford)
    No sensors ($80 each)
220-VM-AF5678
$1505

Replacement sensors

Bosch Air/Fuel Sensor Only (new style, for 220-VM-AF-series) I purchase these in quantity from Bosch



S-461
 $85

Racepak Air/Fuel Sensor Only (new style, for 220-VM-AF-series)



810-SN-AFAMP
 $113
AF Sensor Only (old style, for 220-VM-LS series) Note the round plug
810-SN-AFLSU
$170
Air/Fuel Weldment & Plug
(Weldments are included with purchase of controller)
810-TX-AFWLDP

  $10

Single Channel VNet A/F Module
(For use with 890-KT-AFX or user-supplied 0-5v sensor)
230-VM-AF

  $220

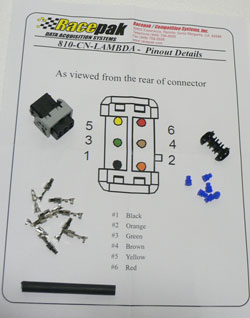

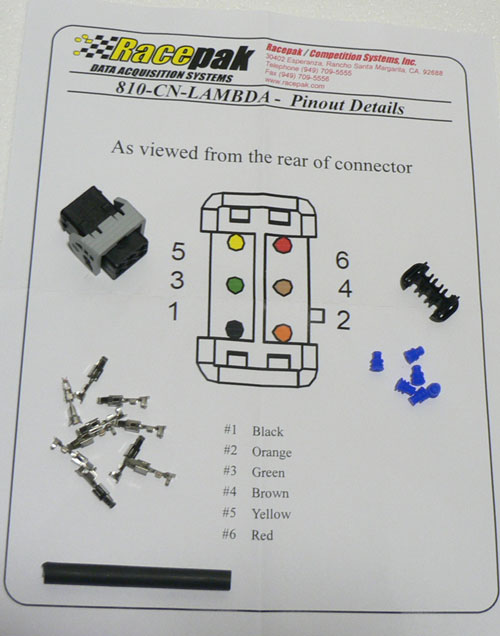

Harness End repair kit

810-CN-Lambda

  $25

  click here for 4 and 8 and 25 weld-in O2 bungs - SS too





MSI O2 bungs

Item#
S-256-8
8 mild steel bungs

WEB Price
$
12

   Weight 2

Mild steel 18mm thread - works with any oxygen sensor


Item#
S-259-8
8 SS bungs

WEB Price
$25

   Weight 2

Stainless steel bung





220-VM-AF1

O2 Components

1. Sensor - is threaded into the header to get samples of exhaust.

2. Controller - receives the  the samples taken by the sensor converts them to fuel type and formats the info for the recorder. The controller also handles the heater circuit and calibrations.

3. Vnet connector - connects the O2 "system" to the recorder network (just like fuel pressure or boost)

Wire lengths:

1. Sensor - 12"
2. Sensor plug to controller - 36"
3. Vnet plug to controller - 16"
4. Power - 46"



Bung Installation

Bungs should be installed 8-12" form the flange
O2 bungs are to be welded in a primary tube 8-12"from the cylinder head. Some racers get away with using one a collector but usually will experience choppy readings at lower RPM.    Click to expand


 Here is a link to a Vid showing where the guys with the unlimited budget put their O2 bungs http://www.youtube.com/watch?feature=player_embedded&v=p53oEbTGJkU#!

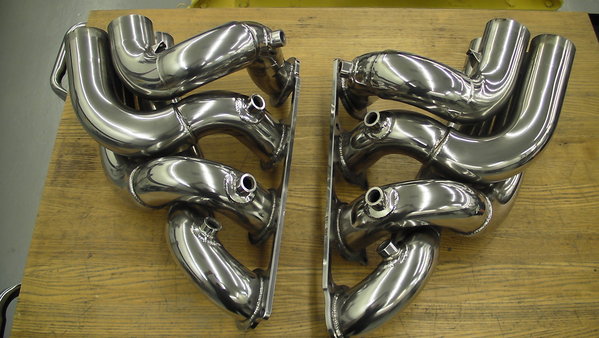

Below is a set of Pro-Fab headers with the bungs about 3" from the flange.

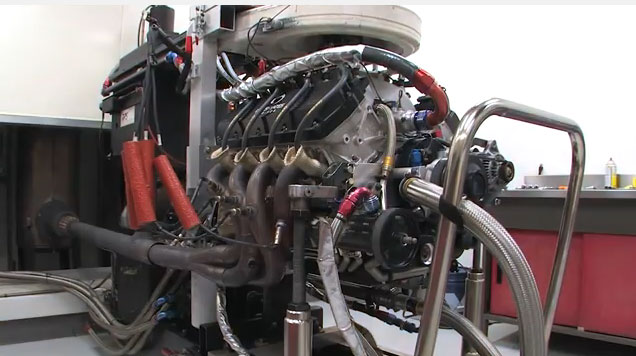

Roush Dyno Cell
