Racepak Dash Units

UDX family
Part numbers 250-xx-UDXxx

The UDX family is 10.2" x 4" in size




IQ3 Family
Part numbers 250-xx-IQ3xx

The IQ3 family is 7.25" x 4" in size

CARB kit --- EFI Kit







Click here to see the Dash mounts

Comparison of IQ3 vs UDX features.

UDX Family

Use the display dash when you already have a V300SD or Sportsman logger. It does not come with any sensors.

  The UDX will controll the shift light. Warning lights are built into the dash.

Shift light below 800-XP-SLMSD $60



250-KT-UDX

UDX Display Dash

$695

The Replay is the most popular Drag Race dash. It will re-display your run. It comes with Oil pressure, and water temp sensors and all wiring you need. You can add EGT's, fuel pressure etc.

It monitors: RPM, Water Temp, Oil Pressure and Volts

The Replay can be upgraded to a Logger dash $724 and must be sent in for the upgrade

Shift light below 800-XP-SLMSD $60

Includes Water Temp, and Oil pressure sensors, and harness.

Click for replacement senders:
water temp
oil pressure

250-DS-UDXRP

UDX Replay Dash

$915

The Street Rod dash has provision for signal lights & speedometer - Comes with Oil pressure, and water temp sensors and all wiring you need. Does not include the speedo or fuel sensor. You can add EGT's, fuel pressure etc.

It monitors: RPM, Water Temp, Oil Pressure, Oil temp and Volts

Fuel tank level comes from your sensor in your tank. The dash just receives a standard signal (which is customizable). If you dont have a Speedometer output you can add GPS speed for $299 directly below. You can get a VDO or Stuart Warner sender if you have an aftermarket tank. GM, Ford, Chrysler and custom. Auto Meter 5291 (GM) or 5292 (Ford) are good speedometer senders.

Shift light below 800-XP-SLMSD $60

Speeedway Motors anti slosh module 91012910

Auto Meter LSx oil pressure adapter to 1/8" NPT 2268

Includes Water Temp, Oil pressure and Oil temp sensors, and harness.

You can not attach a Street Rod to a Sportsman or V300SD recorder.

Click for replacement senders:
water temp
oil pressure

250-DS-UDXSR

UDX Street Rod

$845

When ordering together. I will program the dash for GPS MPH. Specify in the note area if you would like KPH. More info on GPS module HERE.

220-VM-GPS

GPS V-Net module

$299

The Logger dash will record 1 run to be downaloded to the laptop. It can handle 32 V-net sensors such as EGT, O2, pressures and termperatures.

It monitors: RPM, Water Temp, Oil Pressure, DS speed and Volts

The Logger dash works with EFI interfaces but does not have a G-meter.

Shift light 800-XP-SLMSD $60

Includes Water Temp, Oil pressure and DS speed sensors, software and harness.

You can not attach a Logger dash to a Sportsman or V300SD recorder.

Click for replacement senders:
water temp
oil pressure

250-DS-UDXLDX

UDX Logger dash

$1595

Plug & play shift light for UDX dash

800-XP-SLMSD

MSD shift lite for UDX dash

$60

UDX program kit - software, UDX adapter plug with serial cable & USB converter. This kit is needed if you plan to add a sensor or re-program the displays on a Replay, Street Rod, BS3 or EFI dash. The Logger dash comes with this kit.

250-DS-UDXPG

UDX Programming Kit

$99

If you don't need the USB to serial converter or the software/insturctions in above kit.



280-CA-SR-UDX

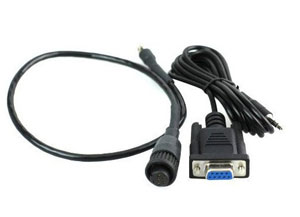

UDX serial cable

$55

Comparison of UDX display vs IQ3 Display

  • Both are $675
  • Both display 5 items per page
  • Both have 4 display pages (total 20 items)
  • Both have a backlight dim/bright feature
  • IQ3 is 3" narrower at 7.2" both are 4" tall
  • Actual display area is the same
  • Both have warning lights
  • IQ3 has built in shift light
  • Both can run an external shift light
  • IQ3 allows any 5 character title
  • UDX has very limited pre-set titles
  • UDX has buttons on the housing to change pages & backlight
  • IQ3 requires an external button(s)
  • Plastic mount panels are available for both
  • Stamped aluminum L mount available for IQ3 only

   IQ3 Family



    IQ3 in Road Race config

IQ3 in Drag Race config

   IQ3 Dragster Install Video

IQ3 Street Dash

The IQ3 Street dash comes with Oil pressure, and water temp sensors, designated wires for RPM, fuel level, volts, turn signal and high beam. Does not include the speedo or fuel sensor. You can add EGT's, fuel pressure etc.

It monitors: RPM, Water Temp, Oil Pressure, Oil temp and Volts

Fuel tank level comes from your sensor in your tank. The dash just receives a standard signal (which is customizable). If you dont have a Speedometer output you can add GPS speed for $299 directly below. You can get a VDO or Stuart Warner sender if you have an aftermarket tank. GM, Ford, Chrysler and custom. Auto Meter 5291 (GM) or 5292 (Ford) are good speedometer senders.



Speeedway Motors anti slosh module 91012910

Auto Meter LSx oil pressure adapter to 1/8" NPT 2268

EFI Capability is built into this dash.

See below for EFI harnesses, momentay toggle switch etc.



250-DS-IQ3S

IQ3 Street Dash

$995

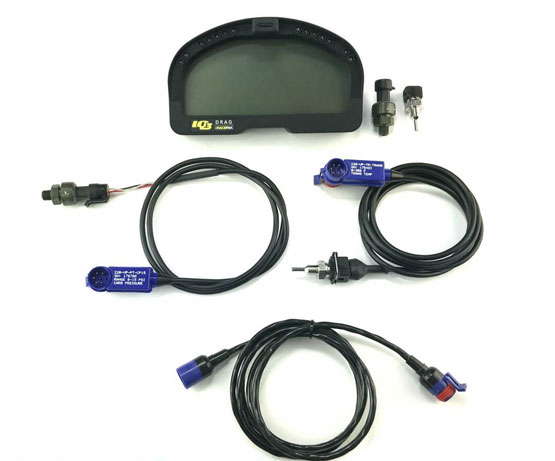

IQ3 Drag Dash

The IQ3 Drag dash comes with V-net style Oil pressure, water temp and DS sensors, designated wires for RPM, volts. It records up to 150 runs on the micro SD card.

Features:

  • Records & stores hundreds of runs on the micro SD card.
  • Customer can add 4 more V-net sensors.

Order DS collar separately Here

FREE 4 channel upgrade till May 31 ($300 value) - no code needed just order your system





See below for EFI harnesses, momentay toggle switch etc.

EFI Capability is built into this dash.



250-DS-IQ3D

IQ3 Drag Dash

$1770

250-DS-IQ3D

IQ3 Drag Dash x.90 Throttle Stop kit adds: 8 mag collar + O2 + 12' Vnet

$2290

EFI harness for IQ3S and IQ3D ONLY with:

  • BS3 (requires Racepak optin in your ECU)
  • Fueltech
  • Holley
  • OBD2

Specify ECU type in the note.





280-CA-EFIxxx

IQ3 EFI Harness with connector

$75

EFI Harness for IQ3S and IQ3D ONLY with:

  • AEM V2/EMS-4/Infinity
  • MSD Aomic LS
  • Generic Can
  • Electromotive TECGT
  • Haltech Haltech V2
  • MoTec Can (data set 3)
  • MegaSquirt-III (DIY automotive)
  • MicroTech
  • ProEFI
  • Fast XFI

This harness simply has 2 wire to connect to your ECU (with Instructions).



280-CA-EFICAN

Generic CAN interface

$50

Comes with the EFI Interface of your choice, the IQ3 and 2 terminator caps.

Click here to go to the EFI interface page



250-DS-IQ3EFI

IQ3 Display & EFI Interface

$1095

  • Dash unit
  • GPS antenna & cable
  • 3 axis G-meter
  • Programming cable
  • 512MB microSD card
  • Data Link software
  • Power/Ground/RPM/Remote Programming Harness

Add any Vnet sensors such as 8 EGT's, Fuel pressure, O2's.
(up to 37 total inputs)

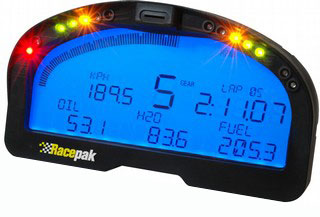

IQ3 Logger dash - Designed for Road Race, Circle Track, Marine, Pulling

  • 32 Channel Internal Data Logger
  • Programmable Shift Lights
  • Programmable Warning Lights With On Screen Warning
  • 24 Programmable Sensor Inputs On 4 Pages
  • Programmable 5 Character Channel Name
  • Gear Indicator
  • Predictive Lap Time
  • Speed, Lap Time, Lap Number From GPS
  • Downloaded Data Provides Track Mapping, Segment Times, Data Reports
  • Metric / Imperial Configurable
  • Prop Slip and Prop Speed for Boat Customers



Click here to go to the Truck/Tractor Pulling page.



250-DS-IQ3LD

IQ3 Logger Dash

$1570

IQ3 toggle switch

Momentay toggle switch for changing backlight and screen pages. To be wired into IQ3 harness.

Shown in Youtube vid above and flush mount below.

IQ3-MTOG

IQ3 momentary toggle

$22

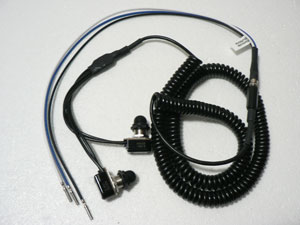

IQ3 buttons on stretch cord for changing backlight and screen pages. With terminated connectors to insert into the IQ3 Deutsch connector.

280-sw-IQ3BTN

IQ3 buttons

$99

IQ3 Logger Dash power, ground and button harness. 6' in length.

280-CA-HARNIQ3L

IQ3LD harness

$50

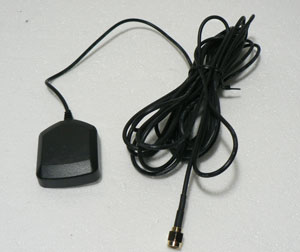

GPS antenna for IQ3LD and G2X. 15' length.

ANTG-ANN-05

GPS Antenna

$65

IQ3 clear plastic protective cover.

Specify with or without flange.

250-DS-IQ3CVR

IQ3 cover

$75

       Weight
    1 lbs

Mounts

IQ3 Steering colum mount

  • Designed for 1 1/4" tube
  • Adjustable
  • Painted steel construction
  • Made in USA by Motion Raceworks



IQ3-SCM

IQ3 Aluminum Mount

$80

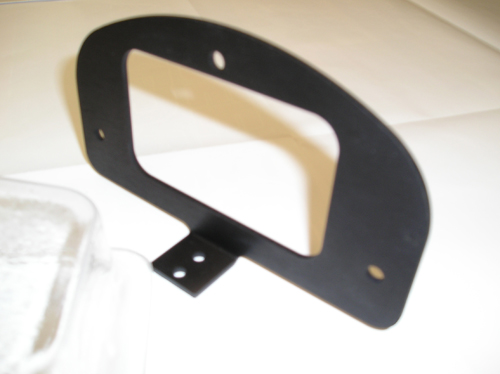

IQ3 aluminum mount





800-MB-IQ3

IQ3 Aluminum Mount

$39



IQ3 mount panel available in Faux Carbon, Black and Silver. Plastic Approximate size 9.5" high, 19.5" wide. Textured surface.

The Fake CF does look good!

Specify color/finish when ordering.

Holes are cut / drilled in the recessed area. This picture is prior to the cutting and drilling.

800-MB-IQ3-PBL

IQ3 Plastic Mount Pannel

$145

dd

UDX mount panel available in Faux Carbon, Black and Silver. Plastic Approximate size 9.5" high, 19.5" wide. Textured surface.

The Fake CF does look good!

Specify color/finish in note when ordering.





800-MB-UDX-PBL

UDX Plastic Mount Pannel

$145

       Weight
    1 lbs



IQ3 flush mount



With 1" stand-off's from a 1/8" thick dash - giving the flush look in the pic to the right>>>

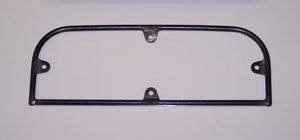

Skinnny Kid Race Cars UDX mount

https://www.skinnykidracecars.com/



RJ racecars mounts: http://www.rjracecars.com/Racepak-IQ3-Digital-Dash-Panel-Prodview.html



Florida 5.0 Mustang cluster inserts for IQ3 and UDX http://www.florida50.com/racepak.htm

Mickeys Chassis Works UDX colum mount

405-701-5845

https://www.facebook.com/Mickeys-Chassis-Works-274055239307356/

They are thinking about an IQ3 as well.





Gauges



Digital Dash Frequently Asked Questions

Here is a recent e-mail question I received:

I have a street/strip 98 Mustang GT that I am installing a Holley HP EFI system on.  I am interested using a Racepak dash instead of the normal mechanical or electrical gauges but I am unsure about which dash is better for my application.

Hi Charles

Three choices:

$1225  UDX Street Rod dash with Holley interface & V-net extension – will pick up MPH, fuel level, RPM, Oil pressure, water temp, and any of the Holley items (boost, AF ratio, duty cycle). Has warning lights and can turn on MSD shift light. Can use Holley oil pressure or included RP OP.

$1300  UDX Replay dash with Holley interface & V-net extension – will pick up RPM, oil pressure, water temp and can replay a run on the screen – you get to see RPM at the shifts, trap RPM, oil pressure down track, any  Holley parameter – boost, etc . Has warning lights and can turn on MSD shift light. Can use Holley oil pressure or included RP OP. Add MPH for $324

$1053  IQ3 display dash with Holley interface – will pick up any of the Holley items (RPM, boost, oil pressure, AF ratio, duty cycle etc etc). No replay feature. Has warning lights and internal shift light and can turn on MSD shift light. Does require that you have the Holley Oil pressure. Includes programming cable and software.

Options:
$60 Holley 555-112 can interface adapter (needed to get the Holley tied in)
$55 programming – I’ll program the 4 dash pages as you request with warning & shift lights
$100 UDX programming kit – required if you are going to program the Street Rod or Replay (not needed for the IQ3)
$110 fake carbon fiber mount panel
$60 MSD shift light
