Order Online or Call 609-265-2110
MSI-Home

Click here for EGT accessories including probes, Motor Cycle, JR Dragster and snowmobile components
 Click here for Liquid Temperature components
Click here for EGT Probes - Sensors - Thermocouples
Click here for EGT hardware Click here for TC wire

Click Here for O2 Bungs & Plugs

Note: EGT cable lengths are now 6' - extension cables are available in any length.

EGT Kits

Item#
TE-107

Single channel EGT kit - clamp-on probe boss

WEB Price
$179.00

       Weight
    2 lbs

  • Includes a Record function to store your highest temp of the run

  • Check the MAX back at your trailer

  • Included is  clamp on  exhaust probe - 72" SS wire

  • Tune your engine for consistency and power

  • Detailed tuning instructions included in each kit

  • Works with Gas and Alky and Nitrous

  • Survives 1700 degree turbo motors

Check in with Biondo Racing Products - George Rupert - Nickerson Carbs
for great deals and service on all our products!

  • The instrument weighs 9 ounces

  • Scroll down to the TE-104 sensor description for more info on the sensor.

Our most popular unit - Hundreds sold!

Item#
TE-106

Single channel EGT kit - weld-on probe boss

WEB Price
$179.00

       Weight
 2 lbs

Same features as TE-107 except is packaged with a weld on - screw in probe and weld bung.



See picture above except the TE-106 comes with a stainless steel weld boss and 1/8 pipe compression fitting.



Item#
TE-102

Dual mode infrared temp unit kit - weld on probe boss

WEB Price
$219.00

       Weight
     3 lbs

The dual mode infrared temp gun and EGT gauge kit saves money by combining two tools in one. It can be used as a Exhaust Gas Temperature unit or a infrared gun. Simply pull it off of the Velcro mounting in the car and point it at the item in question. Put it back in the car a moment later for EGT!

It  includes a laser sight, backlight, temp ranges of 0-750 for infrared and 0-2000 for exhaust, 1% accuracy. Included weld on  exhaust probe with 72" kapton jacketed wire with Stainless over-braid.

Tune your engine for maximum power and consistency and you can determine the temperature of tires, track, brake calipers, rotors, drums, cooling hoses, trailer wheel bearings, air conditioning output in the truck, stuff in the cooler - this list goes on and on.

The instrument weighs 9 ounces.

Click on pic to enlarge

Note that our units include a laser sight and a very tight spot size cone which enables you to get the true temperature of  an item (ie: the water pump housing without picking up cylinder head temp). Some economy temp guns are available without the sight making inaccurate readings more likely.

Item#
TE-103

Dual mode infrared temp unit kit - clamp-on probe boss

WEB Price
$219.00

       Weight
     3 lbs
Same as above except comes with a CLAMP ON probe See pic above except the TE-103 comes with a clamp on assembly.

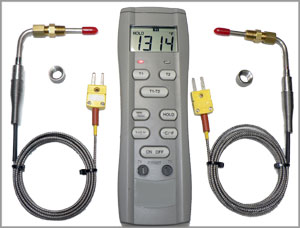

Item#
TE-108

2 channel EGT kit - weld-on probe boss

WEB Price
$254.00

       Weight
     3 lbs

The 2 channel EGT unit offers MAX, for two cylinders. Included is  2 weld-on  exhaust probes.

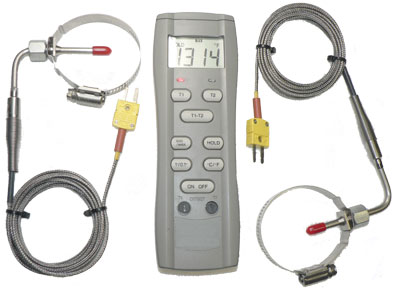

Item#
TE-109

2 channel EGT kit - clamp-on probe boss

WEB Price
$254.00

       Weight
  3 lbs

The 2 channel EGT unit offers MAX, for two cylinders. Included is  2 clamp on  exhaust probes. Tune your engine for consistency and power.

Item#
IRT-2524

Dual mode infrared temp unit only.

WEB Price
$155.00

       Weight
  1 lbs
The dual mode infrared temp gun and exhaust temp gauge can be used as a Exhaust Gas Temperature unit or a infrared gun.You can determine the temperature of tires, track, brake calipers, rotors, drums, cooling hoses, trailer wheel bearings, air conditioning output in the truck, stuff in the cooler - this list goes on and on. It  includes a laser sight, backlight, temp ranges of 0-750 for infrared and 0-2000 for exhaust, 1% accuracy.

Invaluable around the race operation, shop, kitchen etc.

Note that our units include a laser sight and a very tight spot size cone which enables you to get the true temperature of  an item (ie: the water pump housing without picking up cylinder head temp). Some economy temp guns are available without the sight. Without the sight it is easy to get the temp of a nearby item.

Item#
IRT-3400

Single channel temp unit only.

WEB Price
$110

       Weight
  1 lbs
The 1 channel EGT unit offers MAX, HOLD & RECALL for one cylinder or liquid temp sources.

Item#
IRT-3401

Dual channel temp unit only.

WEB Price
$127

       Weight
  1 lbs
The 2 channel EGT unit offers MAX, HOLD & RECALL for two cylinders or liquid temp sources.

NOTE - this unit will measure one channel at a time - we understand that is the case with all 2 channel units.



EGT Probes - Sensors - Thermocouples & weld bungs

Item#
 TE-104

Exhaust Probe Only weld on

WEB Price
$80.00

       Weight      1 lbs

This probe is a quick response exposed tip type with an Inconel 600 shell, a 72" Stainless Steel braided wire with a male K-type plug, and a brass compression fitting.

Weld bungs in mild steel and stainless available below.

These sensors are manufactured in the USA by the one of the premiere EGT manufacturers and are sensitive enough to see a single misfire at 8000 RPM! (of course you would need a data logger with a sample rate of 1000 per second to pick that up).

All of our temperature sensors are ungrounded to eliminate RF interference.

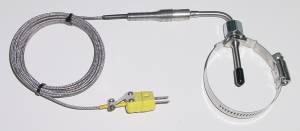

Item#
 TE-105

Exhaust Probe Only clamp on

WEB Price
$80.00

    Weight
      2 lbs



This probe is a quick response exposed tip type with an Inconel 600 shell, a 8' Stainless Steel braided wire with a male K-type plug.



   EGT hardware

Item#
TE-301

Stainless weld boss

WEB Price
$
3.00

       Weight
      1 lbs

1/8 pipe weld boss - stainless steel - less than most charge for mild steel! Add a compression fitting to the weld bung for a complete EGT fitting kit.

Item#
TE-301-8

 8 Stainless weld boss

WEB Price
$
26.00

       Weight
      1 lbs

 8 of the Stainless weld bung/boss.



8x above

Item#
TE-345

 Compression fitting

WEB Price
$
3.00

       Weight
      1 lbs

1/8" pipe brass compression fitting for 3/16" probes



Item#
TE-34
6

 Compression fitting

WEB Price
$
3.00

       Weight
      1 lbs

1/8" pipe brass compression fitting for 1/4" probes

Item#
TE-34
7

 Compression fitting

WEB Price
$
3.75

       Weight
      1 lbs

1/4" pipe brass compression fitting for 3/16" probes

Item#
TE-348

 Compression fitting

WEB Price
$11

       Weight
      1 lbs

1/8" pipe mild steel compression fitting for 3/16" probes - uses 9/16 wrench size on nut. This fitting matches with my clamp on system. Some times referred to as the QwikData style

Item#
TE-3
07

 Clamp Assembly

WEB Price
$1
2

       Weight
      1 lbs

Clamp assembly used on TE-105 with ferule & Nut for 3/16" probes

Item#
TE-3
09

 1/4" Male Weld Base - Racepak

WEB Price
$
7

       Weight
      1 lbs

If you are trying to match some that you already have - a 7/16 fine thread nut fits on the threads.

Item#
TE-310

 1/4" male complete fitting - racepak

WEB Price
$
11

       Weight
      1 lbs





Item#
TE-311

 3/16" male weld base

WEB Price
$
6

       Weight
      1 lbs

If you are trying to match some that you already have - a 3/8 coarse thread nut fits on the threads.

Item#
TE-312

 3/16" male complete fitting

WEB Price
$
9

       Weight
      1 lbs



Item#
TE-313

brass adapter 3/16 sensor to 1/4

WEB Price
$12

       Weight
      1 lbs

Brass adapter ferrule 3/16 sensor to 1/4 Racepak header bung. Includes Nut.

Racepak 1/4" fittings use 7/16-20 (fine threaD) male.



Item#
TE-31
4

 1/4" racepak nut

WEB Price
$
3

       Weight
      1 lbs

1/4 nut only





Item#
TE-315

 steel adapter Racepak 1/4 sensor to 1/8" female

WEB Price
$11

       Weight
      1 lbs

 This adapter would typically be used to put 1/4" RP sensors in a set of headers with 1/8" female NPT bungs used by Computech, Edelbrock and others for 3/16" sensors.

Racepak 1/4" fittings use 7/16-20 (fine thread)





EGT TC wire

Item#
TE-
283

Type K Thermocouple wire

WEB Price
$
1.55/ft

       Weight
      1 lbs

Type K Thermocouple wire 24 Gauge stranded, Teflon -PFA insulation. Insulation rated at 500* F

5 foot minimum order

Item#
TE-
284

Type K Thermocouple wire

WEB Price
$
1.55/ft

       Weight
      1 lbs

Type K Thermocouple wire 20 Gauge stranded, twisted shielded with drain wire,  Insulation rated at 220* F

5 foot minimum order
